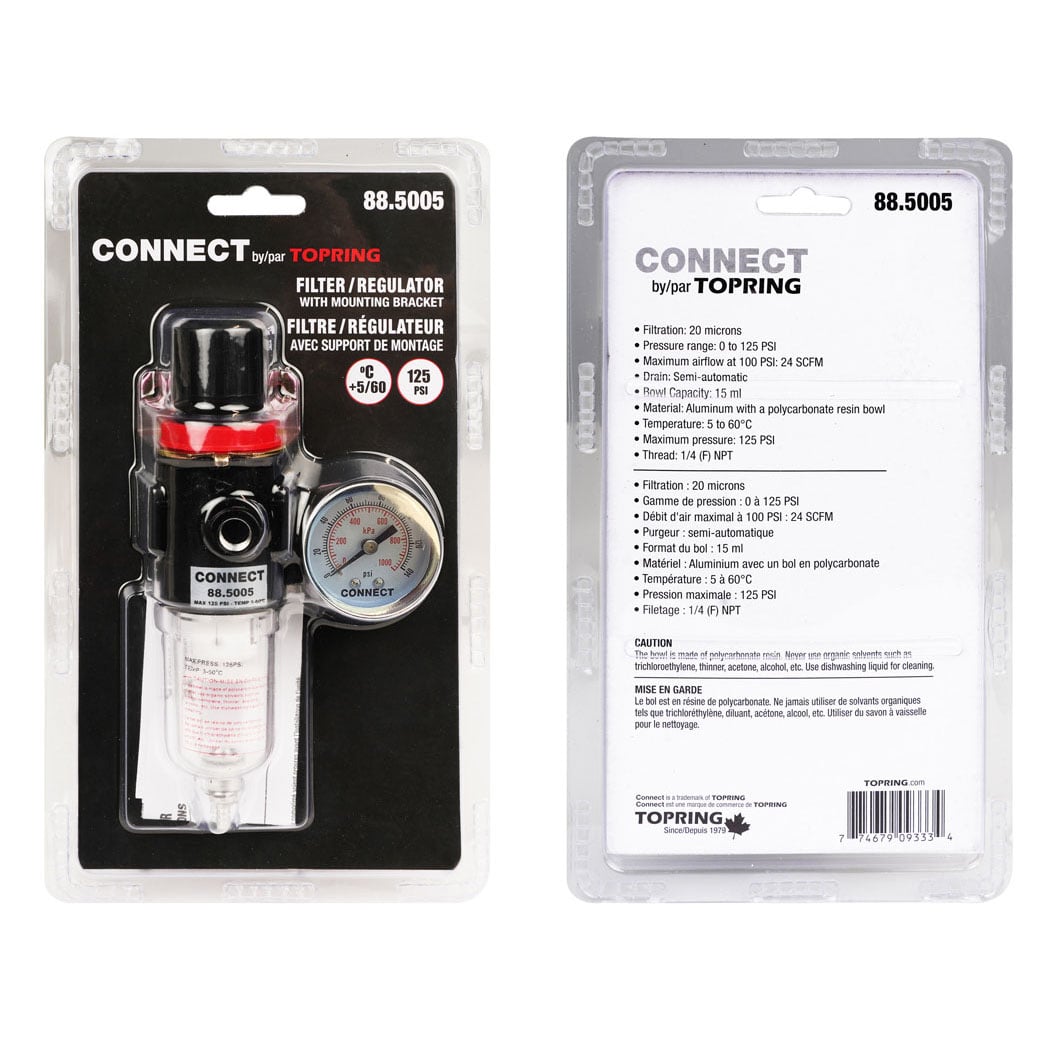

20 Micron Filter Regulator 15 to 125 PSI 1/4 (F) NPT CONNECT
20 Micron Filter Regulator 15 to 125 PSI 1/4 (F) NPT CONNECT
Description
This combined filter-regulator unit for compressed air offers a compact and efficient solution for point-of-use air treatment. Its centrifugal separation system effectively removes water, while its filtration captures contaminants down to 20 microns, ensuring clean air for pneumatic tools and industrial equipment.
Equipped with a semi-automatic drain, it allows quick and easy condensate evacuation by simply lifting the drain ring. Its pressure regulator provides precise adjustment from 15 to 125 PSI, essential for stabilizing pressure and optimizing performance in any compressed air system.
A pressure gauge is included to allow immediate visual monitoring of pressure.
A wall bracket is also supplied to facilitate installation.
A reliable and efficient solution to improve compressed air quality, reduce pneumatic tool wear, and optimize energy efficiency in industrial installations.
Technical Specifications
- Product Series88
- Product TypeCombined Units
- LockableNo
- Sub-BrandCONNECT
- Maximum Fluid Temperature (°C)60
- Maximum Inlet Pressure (PSI)125
- Minimum Regulated Pressure (PSI)15
- Filter TypeParticulate
- Reference Filtration Level (micron)20
- Nominal Airflow Rate (SCFM)24
- Drain TypeSemi-Automatic
- Inlet Connection TypeThreaded
Documents
Warranty
No warranty is applicable to this product.
