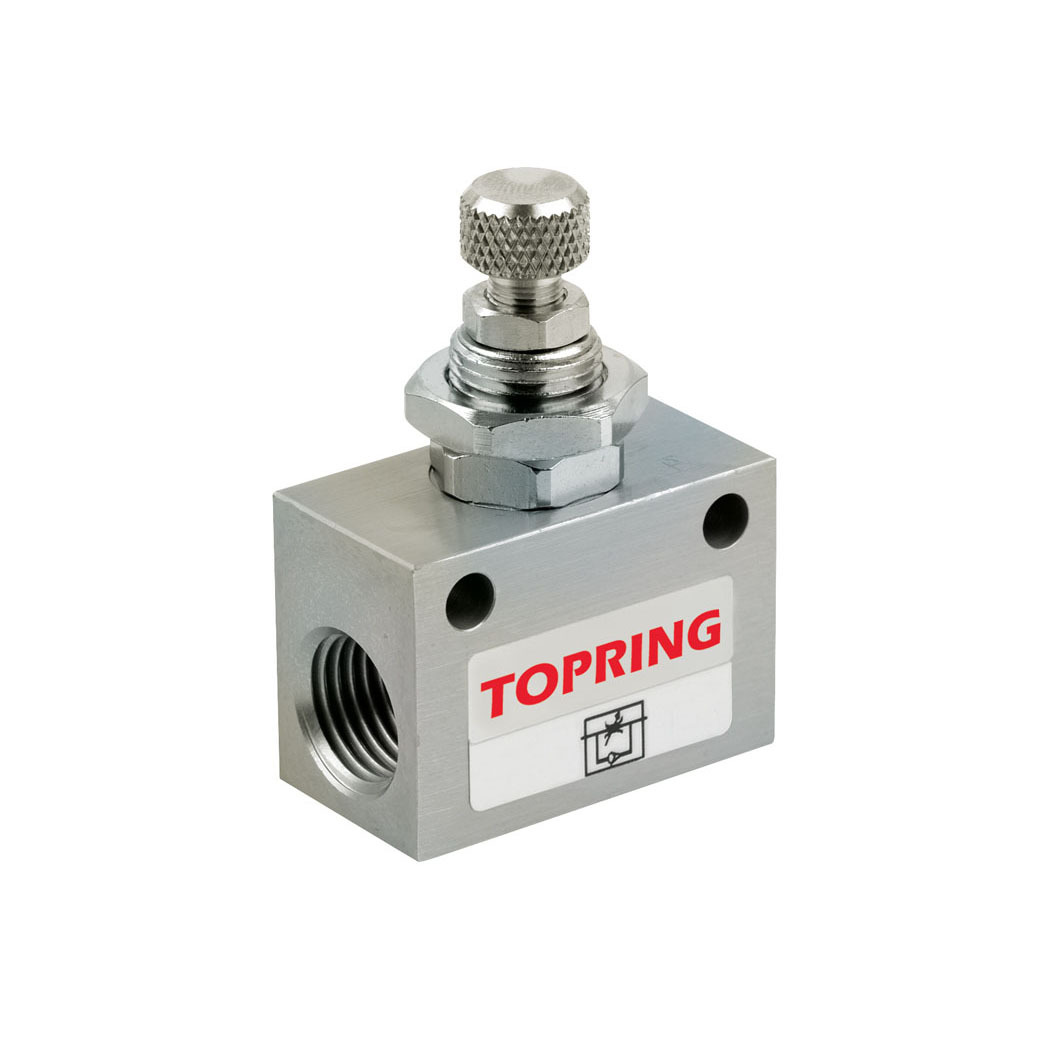

Aluminum Flow Control Valve for Cylinder 1/4 (F) NPT
Aluminum Flow Control Valve for Cylinder 1/4 (F) NPT
Description

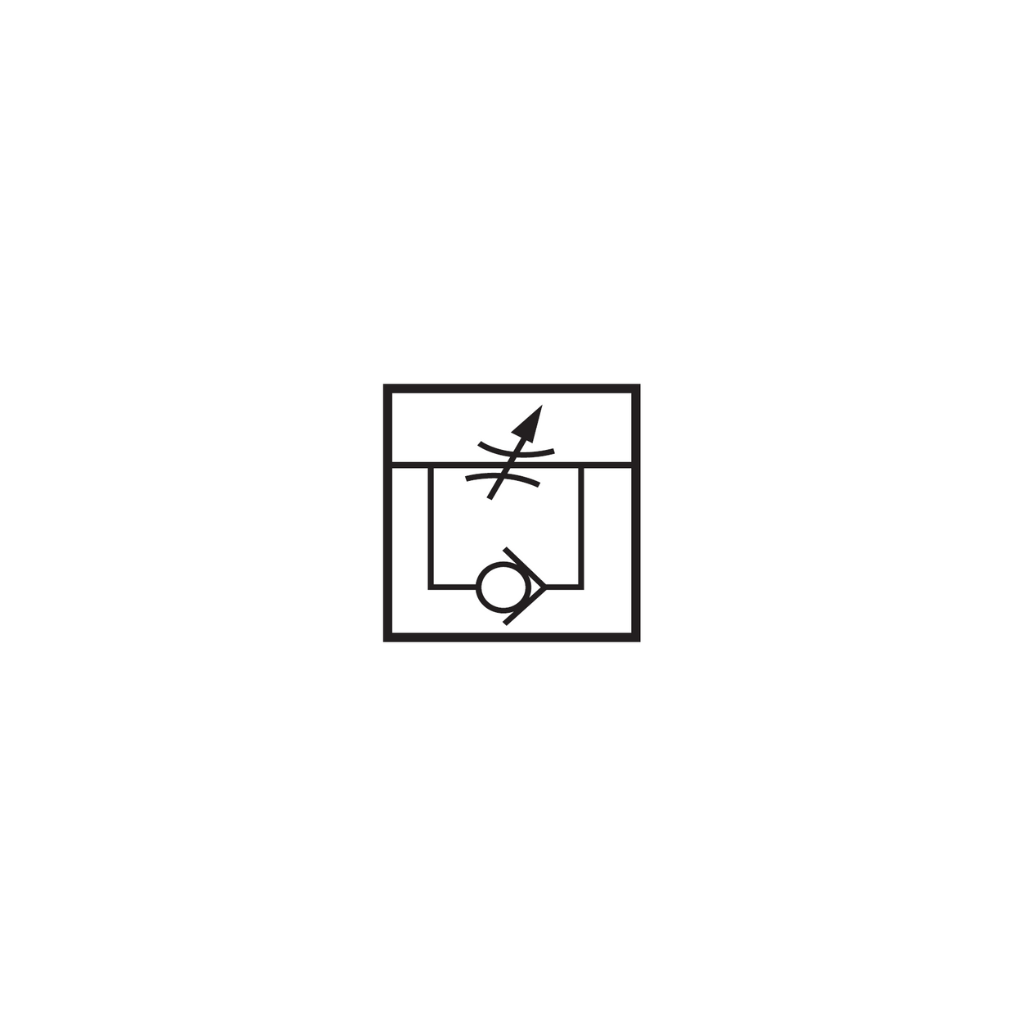

This flow regulator allows for precise adjustment of cylinder speed, even at low speeds, ensuring smooth and consistent motion. It controls the air flow in one direction and allows free flow in the opposite direction, providing accurate control during extension and retraction cycles.
This pneumatic flow control valve can be installed in-line and features a lock nut to prevent accidental needle displacement, maintaining a stable and reliable adjustment over time. Designed for demanding industrial applications, it offers accuracy, reliability, and long service life in pneumatic cylinder control.
Technical Specifications
- Product Series85
- Product TypeCylinder Flow Control Valves
- Maximum Inlet Pressure (PSI)140
- Check Valve IncludedYes
- With ExhaustNo
- Adjustability CapacityYes
- Coefficient of Velocity (CV)0.33
- Minimum Fluid Temperature (°C)-10
- Maximum Fluid Temperature (°C)80
- Inlet Connection TypeThreaded
- Inlet Connection SubtypeNPT
- Inlet Nominal Size (Imperial)1/4 in
Documents
There are no documents available.
Warranty
G1: 1 Year Warranty
The replacement warranty (G) means that the product, or parts of the product, may be replaced by a new product and/or parts or equivalent. The warranty covers any manufacturing or material defect. The warranty does not cover installation and/or removal costs incurred by the customer nor shipping costs.
Failure to comply with the technical specifications, failure to follow the guidelines in the installation guide and/or the technical sheet, inappropriate or excessive tightening, misuse and/or abuse, failure to comply with the maintenance guidelines, normal wear, contamination and/or corrosion, neglect/accident, unauthorized repair attempt and/or disassembly, alteration of the product, assembly with incompatible products.
If the product contains one or several parts with a 1-month limited warranty (GL), these parts will be excluded from the 1-year warranty (G1).
