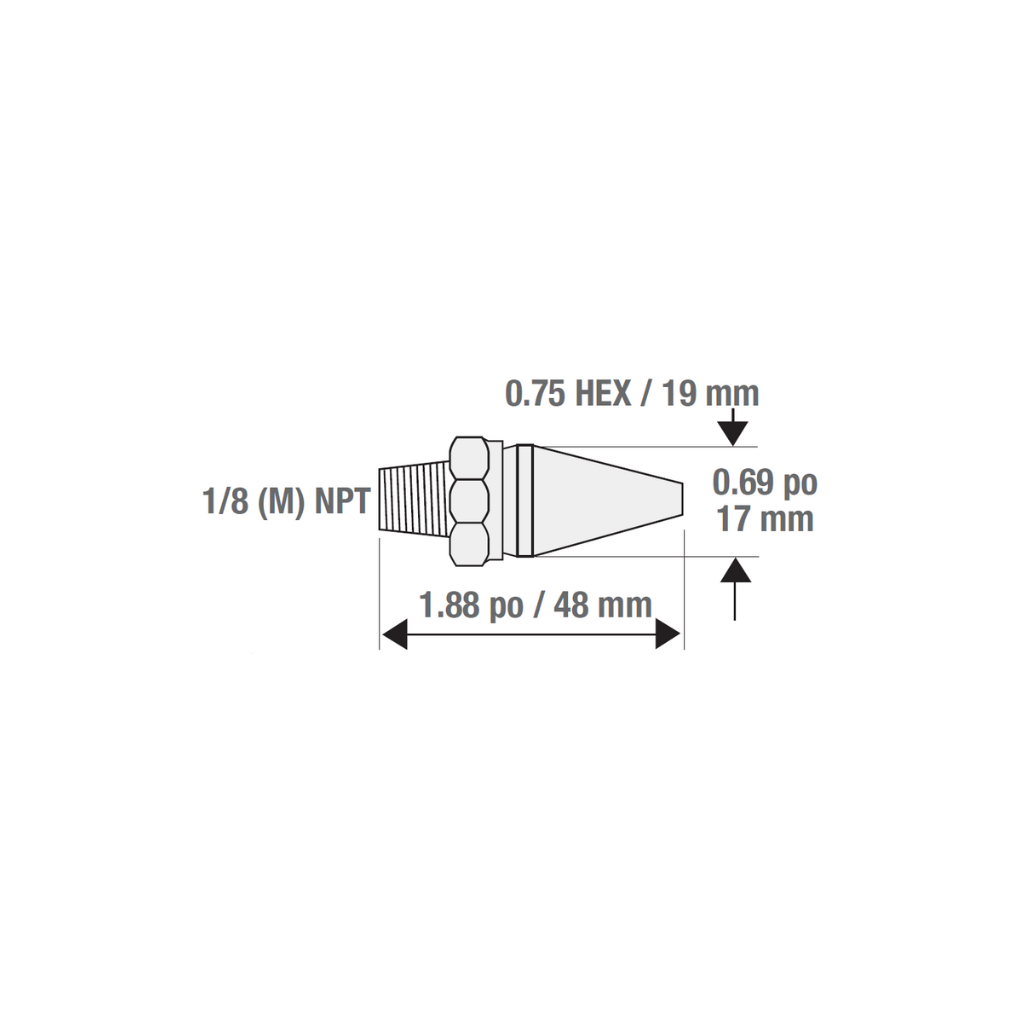

Stainless Steel Air Saver Nozzle 1/8 (M) NPT
Stainless Steel Air Saver Nozzle 1/8 (M) NPT
Description
The jet of air rapidly exiting the nozzle creates powerful side suction, drawing more ambient air into its jet.
Provides a powerful jet while minimizing compressed air consumption and operating costs.
Adjustable flow and pressure.
Retains up to 80% air compared to 1/4 inch open hose.
For ejecting parts from stamping or molding machines, expelling chips and debris, cleaning before painting, drying and cooling.

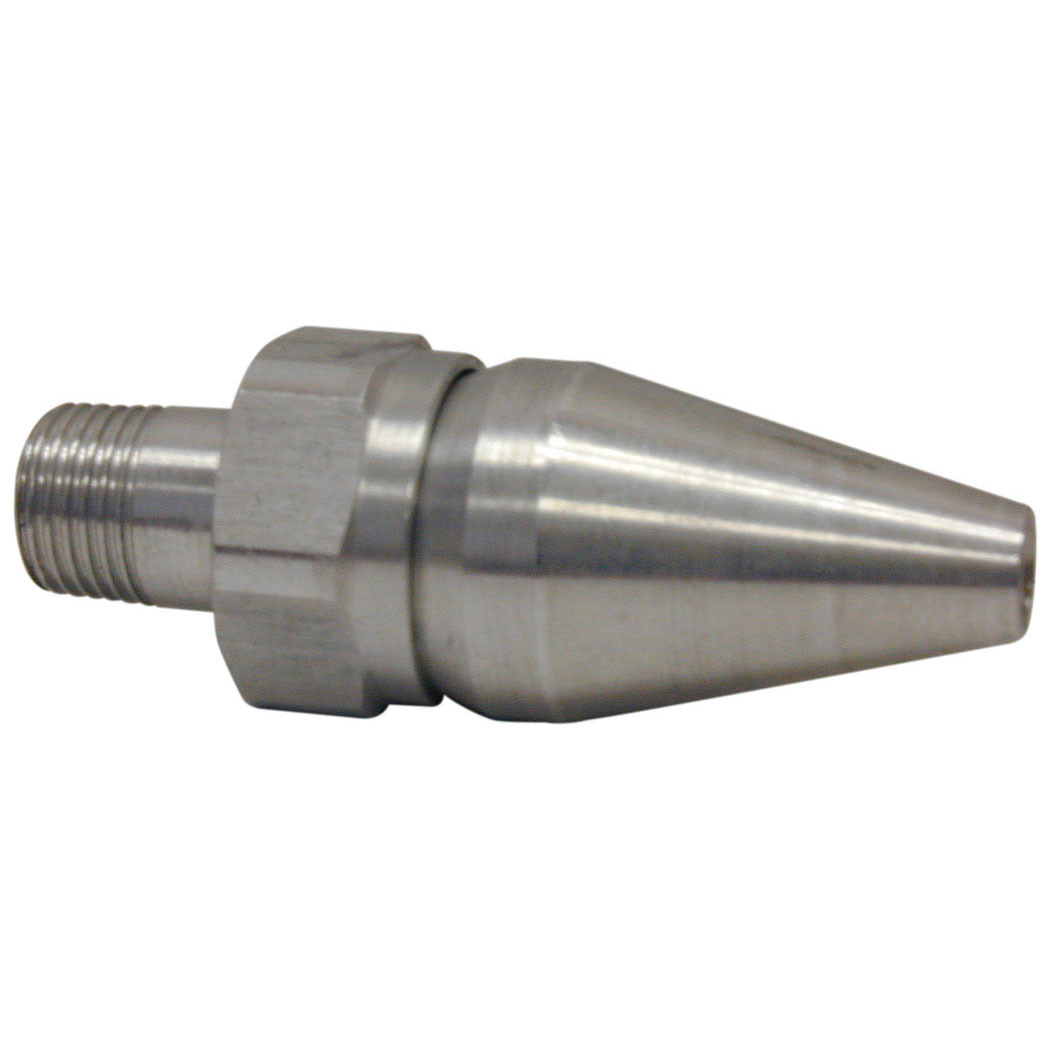

The 68.105 stainless steel model is suitable for most industrial applications.
Technical Specifications
- Product Series68
- Product TypeAir Savers
- Minimum Amplified Airflow (SCFM)25
- Maximum Amplified Airflow (SCFM)375
- Air Consumption (SCFM)5-75
- Maximum Inlet Pressure (PSI)250
- Maximum Fluid Temperature (°C)260
- Compatible FluidsAir
- Inlet Connection TypeThreaded
- Inlet Connection SubtypeNPT
- Inlet Nominal Size (Imperial)1/8 in
- Inlet Connection GenderMale
Documents
There are no documents available.
Warranty
G1: 1 Year Warranty
The replacement warranty (G) means that the product, or parts of the product, may be replaced by a new product and/or parts or equivalent. The warranty covers any manufacturing or material defect. The warranty does not cover installation and/or removal costs incurred by the customer nor shipping costs.
Failure to comply with the technical specifications, failure to follow the guidelines in the installation guide and/or the technical sheet, inappropriate or excessive tightening, misuse and/or abuse, failure to comply with the maintenance guidelines, normal wear, contamination and/or corrosion, neglect/accident, unauthorized repair attempt and/or disassembly, alteration of the product, assembly with incompatible products.
If the product contains one or several parts with a 1-month limited warranty (GL), these parts will be excluded from the 1-year warranty (G1).
