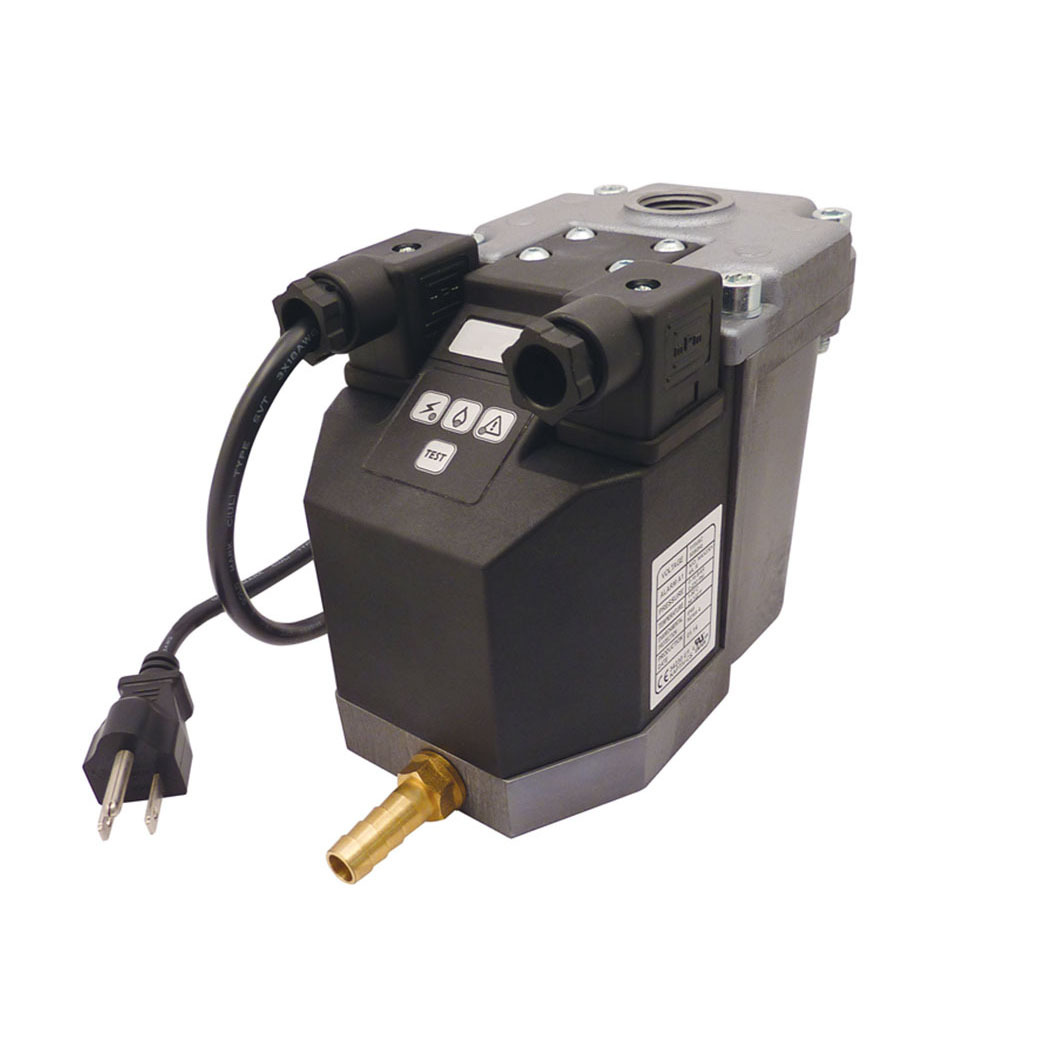

Automatic Drain 3500 SCFM 1/2 (F) NPT - Discontinued
Automatic Drain 3500 SCFM 1/2 (F) NPT - Discontinued
Description
Drains condensate from the compressed air system without any air loss.
Fits multiple types of applications and compressed air systems up to 3000 SCFM and up to 230 PSI.
Effective and rapid draining of condensates, even highly emulsified ones, thanks to the large 4.5 mm outlet orifice.
Integrated mesh screen to protect against blockages.
LED indicator lights allow easy monitoring of the purge operation.
The DIN 43650-B alarm contact provides an indication of the duration of the purge function.
Removable electronic module and top cover allowing disassembly without disconnecting from the compressed air system.
Balancing line not required (protected against air locks).
The 1.8 m power cord and shut-off valve with “Y” filter allow for quick and easy installation.
Technical Specifications
- Product Series59
- Product TypeCondensate Drains
- Drain TypeAutomatic
- Trigger TypeElectric Float
- Power Supply TypeWired
- Inlet Connection TypeThreaded
- Inlet Connection SubtypeNPT
- Inlet Nominal Size (Imperial)1/2 in
- Inlet Connection GenderFemale
- Compatible FluidsAir
Documents
Warranty
R1: 1 Year Repair
The repair warranty (R) means that the product or parts of the product will be repaired or refurbished. The warranty covers any manufacturing or material defect. The warranty does not cover installation and/or removal costs incurred by the customer nor shipping costs.
Failure to comply with the technical specifications, failure to follow the guidelines in the installation guide and/or the technical sheet, inappropriate or excessive tightening, misuse and/or abuse, failure to comply with the maintenance guidelines, normal wear, contamination and/or corrosion, neglect/accident, unauthorized repair attempt and/or disassembly, alteration of the product, assembly with incompatible products.
If the product contains one or several parts with a 1-month limited warranty (GL), these parts will be excluded from the 1-year warranty (R1).
