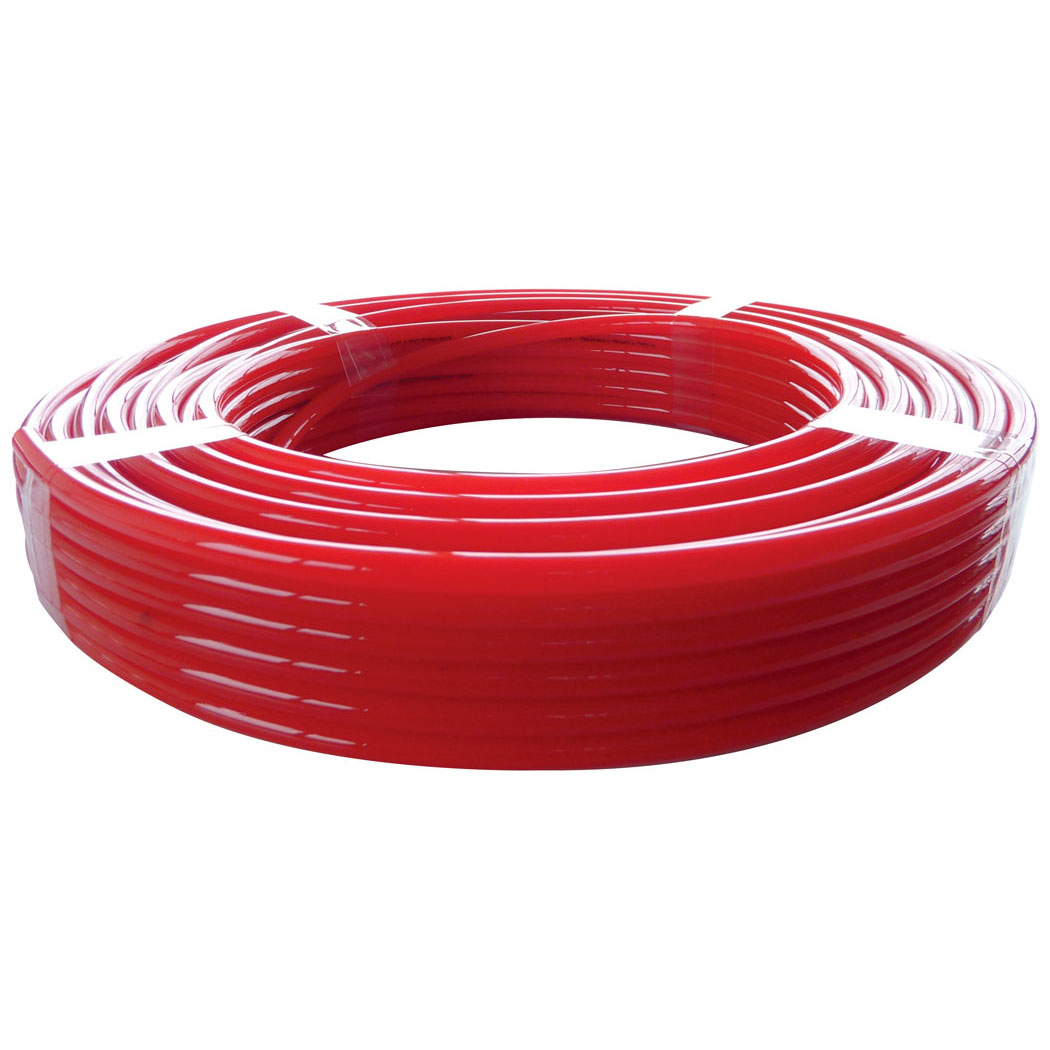

Red Nylon Tube 5/16 (8 mm) O.D. 100 Feet (30 m)
Red Nylon Tube 5/16 (8 mm) O.D. 100 Feet (30 m)
Description
It provides excellent flexibility and dimensional stability, ensuring a secure and leak-free connection with push-to-connect fittings.
This high-performance tubing stands out for its exceptional resistance to pressure, crushing, abrasion, and cracking, as well as its strong chemical resistance to solvents, alkalis, oils, greases, petroleum products, and mould growth.
Built for demanding environments, it is vibration-resistant, offers low moisture absorption, and withstands a wide temperature range.
Silicone-free and RoHS compliant, this tubing provides a reliable and long-lasting solution for industrial and pneumatic applications.
Technical Specifications
- External Diameter (in)5/16
- Product Series32
- Product TypePneumatic Tubing
- Nominal Diameter (in)5/16
- External Diameter (mm)8
- Internal Diameter (mm)6
- Internal Diameter (in)0.233
- Length (m)30
- Length (ft)100
- Hose ColorRed
- Hose Outer Layer MaterialNylon/Polyamide 12
- Hose Inner Layer MaterialNylon/Polyamide 12
Documents
There are no documents available.
Warranty
G1: 1 Year Warranty
The replacement warranty (G) means that the product, or parts of the product, may be replaced by a new product and/or parts or equivalent. The warranty covers any manufacturing or material defect. The warranty does not cover installation and/or removal costs incurred by the customer nor shipping costs.
Failure to comply with the technical specifications, failure to follow the guidelines in the installation guide and/or the technical sheet, inappropriate or excessive tightening, misuse and/or abuse, failure to comply with the maintenance guidelines, normal wear, contamination and/or corrosion, neglect/accident, unauthorized repair attempt and/or disassembly, alteration of the product, assembly with incompatible products.
If the product contains one or several parts with a 1-month limited warranty (GL), these parts will be excluded from the 1-year warranty (G1).
