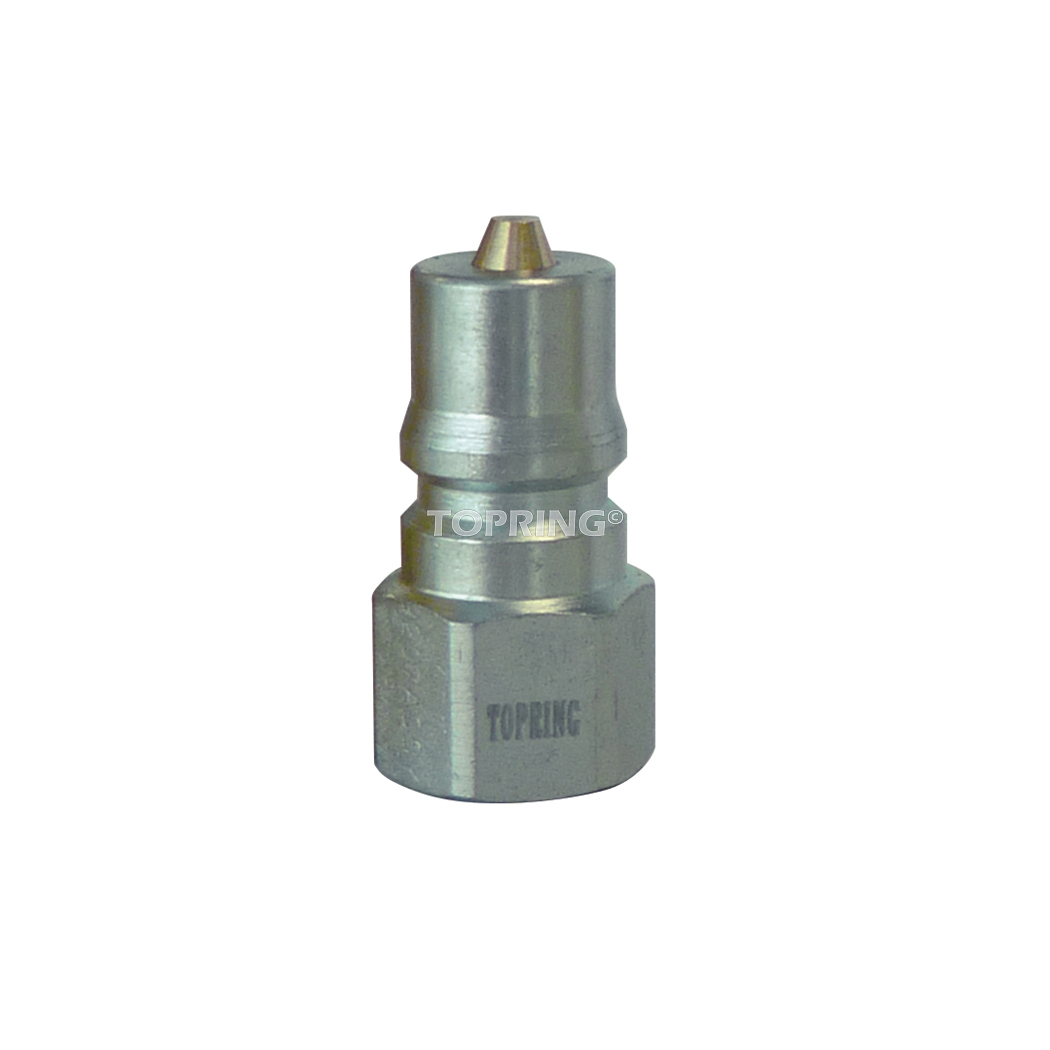

Steel Hydraulic Coupler Plug 1 (F) NPT
Steel Hydraulic Coupler Plug 1 (F) NPT
Description
No loss of liquid when disconnected.
Manual connection with double shut-off valve.
Corrosion-resistant internal components.
For hydraulic applications, plastic injection moulding, forestry, mining, construction, excavation and agriculture.
Technical Specifications
- Product Series29
- Product TypeHydraulic Coupler Plugs
- SwivelNo
- Maximum Inlet Pressure (PSI)4500
- Maximum Fluid Temperature (°C)125
- Inlet Connection TypePlug
- Inlet Connection SubtypeISO 7241-2B Profile (Hydraulic)
- Outlet Connection TypeThreaded
- Outlet Connection SubtypeNPT
- Outlet Nominal Size (Imperial)1 in
- Outlet Connection GenderFemale
- Disconnect ModeZero Pressure
