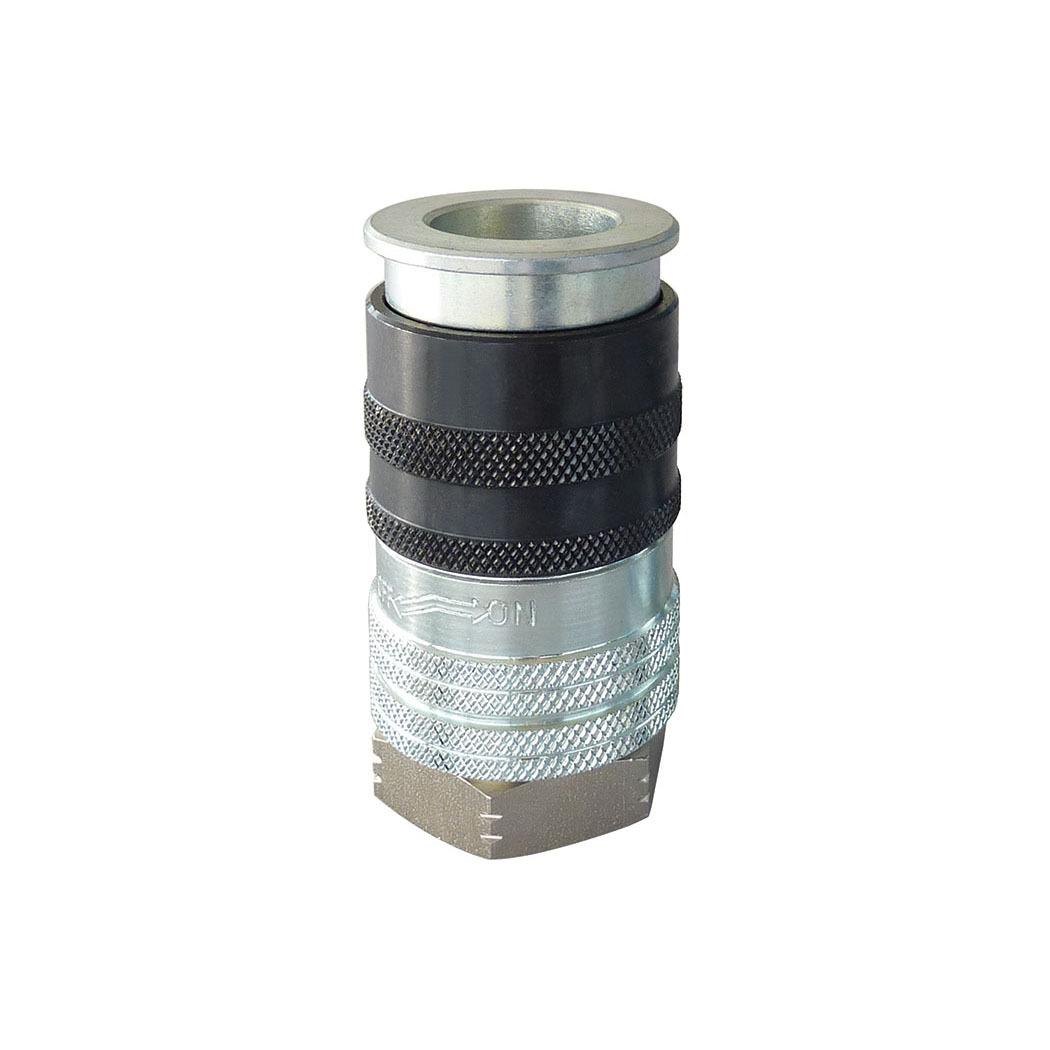

3/4 Industrial Composite Quick Coupler 3/4 (F) NPT - Discontinued
3/4 Industrial Composite Quick Coupler 3/4 (F) NPT - Discontinued
Description
Resistant to shocks and rough treatment, for exceptional service life.
The composite sleeve protects delicate surfaces from the risk of scratches.
Its light weight makes it highly ergonomic and safe to use.
When the sleeve is moved, the air pressure is cut off and automatically eliminated downstream. Disconnections are easy to perform at zero pressure.
Fitting meets ISO 4414 safety standards.
Sound level on disconnection is just 80 dB.
Automatic connection.
Watertight and reliable.
Technical Specifications
- Product Series22
- Product TypePneumatic Quick Couplers
- Nominal Airflow Rate (SCFM)169
- Maximum Inlet Pressure (PSI)225
- Maximum Fluid Temperature (°C)70
- Inlet Connection TypeThreaded
- Inlet Connection SubtypeNPT
- Inlet Nominal Size (Imperial)3/4 in
- Inlet Connection GenderFemale
- Outlet Connection TypeAutomatic
- Outlet Connection SubtypeIndustrial Profile
- Outlet Nominal Size (Imperial)3/4 in
Documents
Warranty
G03: 3 Month Warranty
The replacement warranty (G) means that the product, or parts of the product, may be replaced by a new product and/or parts or equivalent. The warranty covers any manufacturing or material defect. The warranty does not cover installation and/or removal costs incurred by the customer nor shipping costs.
Failure to comply with the technical specifications, failure to follow the guidelines in the installation guide and/or the technical sheet, inappropriate or excessive tightening, misuse and/or abuse, failure to comply with the maintenance guidelines, normal wear, contamination and/or corrosion, neglect/accident, unauthorized repair attempt and/or disassembly, alteration of the product, assembly with incompatible products.
If the product contains one or several parts with a 1-month limited warranty (GL), these parts will be excluded from the 3-month warranty (G03).
Disclaimer
Please note that while we make every effort to accurately represent our products on our website, slight variations in design and appearance may occur due to factors such as manufacturing processes and materials used.
