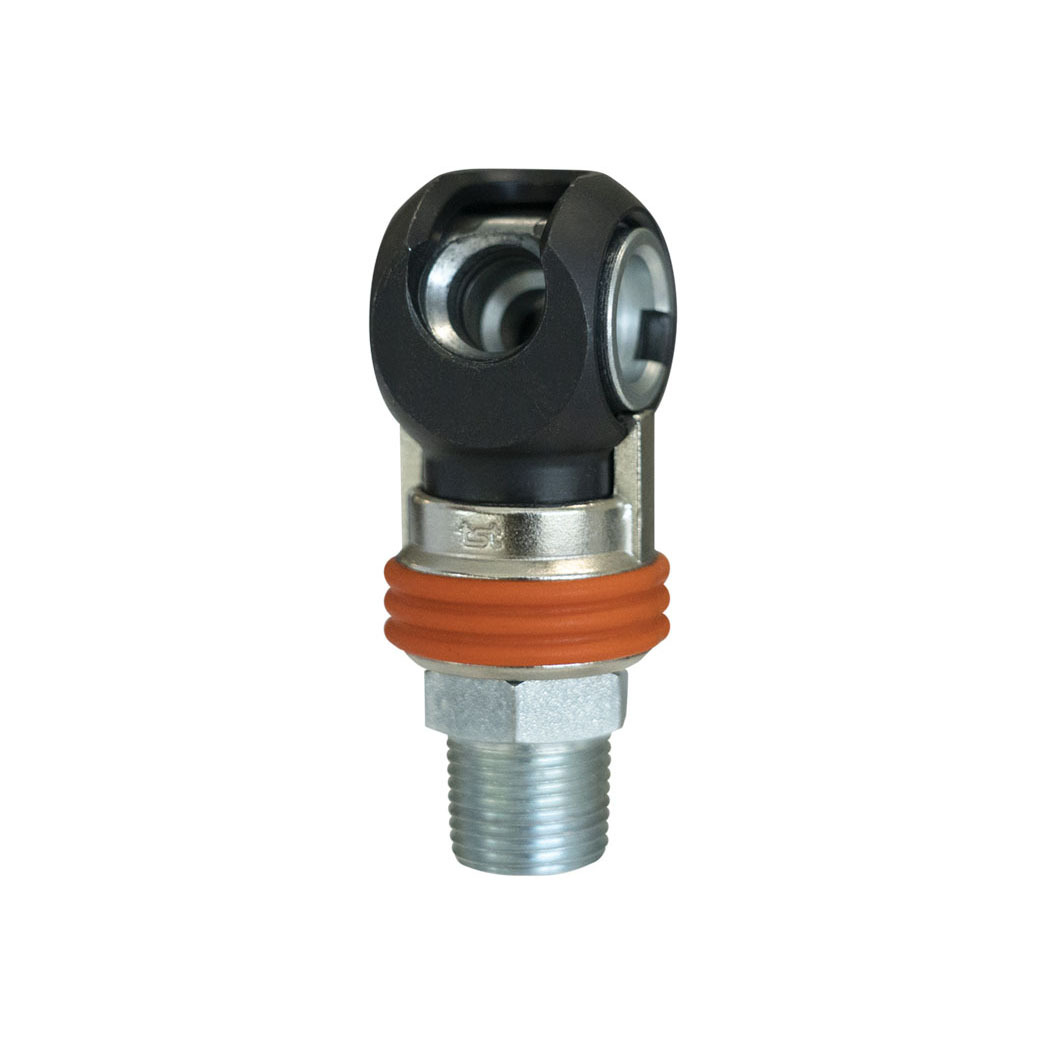

1/4 Industrial Steel Swing Coupler 1/4 (M) NPT TOPQUIK SC

Product #:20.947

Safety Solution

1/4 Industrial Steel Swing Coupler 1/4 (M) NPT TOPQUIK SC

Product #:20.947

Description

This manual coupling offers easy handling with no reverse force from pressure, allowing effortless connection. Downstream pressure is automatically released, ensuring safe zero-pressure disconnection. With its full-flow bore, tools benefit from optimal performance without requiring inlet overpressure. Its silent disconnection helps reduce workplace noise pollution, while the abrasion-resistant finish ensures outstanding durability even in demanding conditions.

Technical Specifications

Product Series20
Product TypePneumatic Quick Couplers
Sub-BrandTOPQUIK SC
Threads Sealant IncludedNo
With ExhaustYes
SwivelNo
Nominal Airflow Rate (SCFM)38
Maximum Inlet Pressure (PSI)360
Maximum Fluid Temperature (°C)100
Inlet Connection TypeThreaded
Inlet Connection SubtypeNPT
Inlet Nominal Size (Imperial)1/4 in

More Information

Over-pressurization could result in a sudden failure of the coupler causing severe bodily injury or death. Be sure to select the proper coupler for your application and use only within the specified service pressure range.

Documents

Selection Guide

Warranty

G2: 2 Year Warranty

The replacement warranty (G) means that the product, or parts of the product, may be replaced by a new product and/or parts or equivalent. The warranty covers any manufacturing or material defect. The warranty does not cover installation and/or removal costs incurred by the customer nor shipping costs.

Failure to comply with the technical specifications, failure to follow the guidelines in the installation guide and/or the technical sheet, inappropriate or excessive tightening, misuse and/or abuse, failure to comply with the maintenance guidelines, normal wear, contamination and/or corrosion, neglect/accident, unauthorized repair attempt and/or disassembly, alteration of the product, assembly with incompatible products.

If the product contains one or more parts with a 1-month limited warranty (GL), these parts will be excluded from the 2-year warranty (G2).
