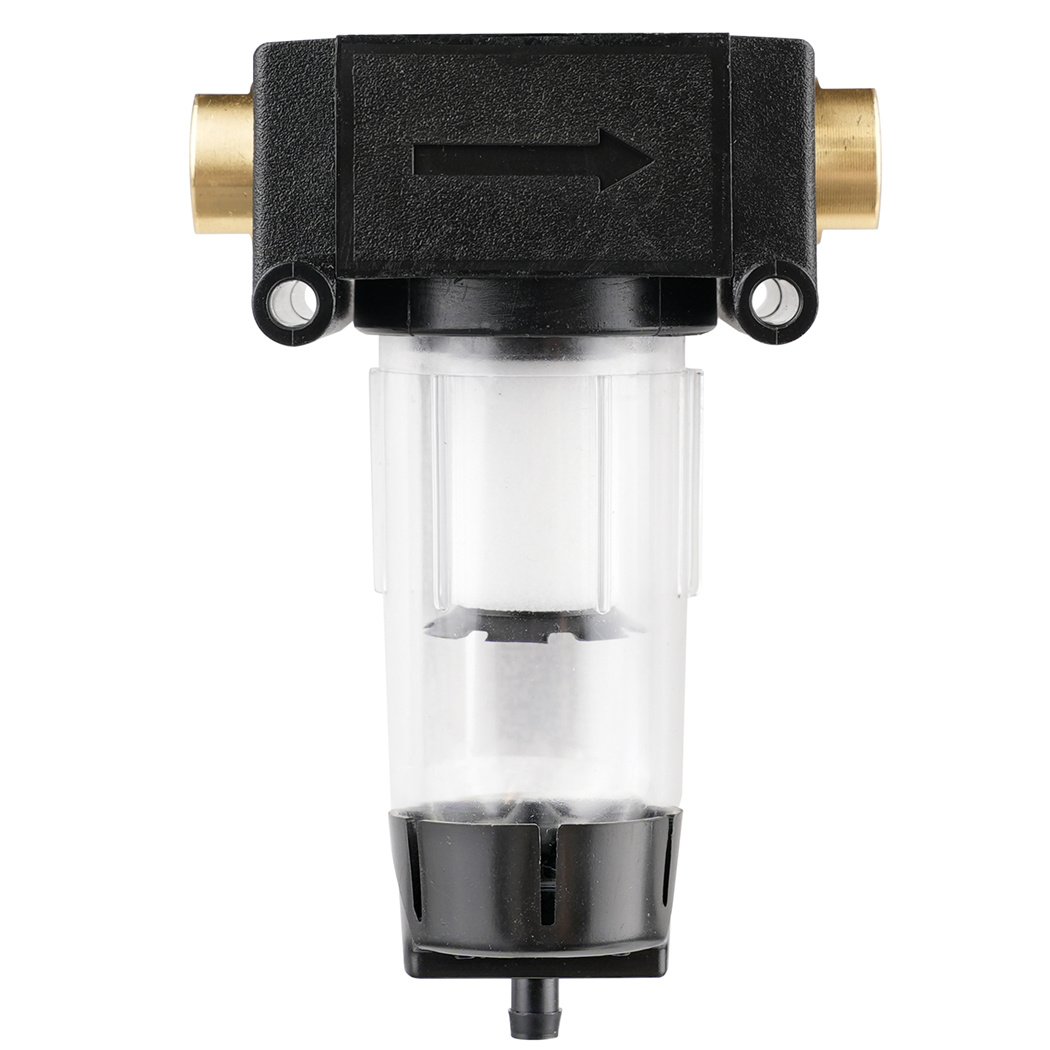

5 Micron Filter With Polycarbonate Bowl 1/4 (F) NPT S50 MODULAIR 200
5 Micron Filter With Polycarbonate Bowl 1/4 (F) NPT S50 MODULAIR 200
Description
This 5-micron compressed air filter can be installed in a modular setup or in-line, providing flexible integration into any compressed air system. It effectively removes water and solid particles to protect pneumatic equipment and improve overall system performance.
The manual drain discharges condensate only when the purge valve is manually opened, ensuring controlled and reliable drainage.
Designed to improve compressed air quality, the filter removes contaminants that can damage equipment, reduce system efficiency, or affect product quality. It captures larger particles such as dust, dirt, and rust to protect downstream components and enhance the efficiency of subsequent filtration stages. It also helps prevent premature wear on the air compressor.
Technical Specifications
- Product Series50
- Product TypeFilters
- LockableNo
- Sub-BrandMODULAIR 200
- Maximum Fluid Temperature (°C)52
- Maximum Inlet Pressure ISO (PSI)150
- Minimum Regulated Pressure (PSI)0
- Filter TypeParticulate
- Reference Filtration Level (micron)5
- Nominal Airflow Rate ISO (SCFM)30
- Drain TypeManual
- Drain LocationInternal
Documents
Warranty
R5: 5 Year Repair
The repair warranty (R) means that the product or parts of the product will be repaired or refurbished. The warranty covers any manufacturing or material defect. The warranty does not cover installation and/or removal costs incurred by the customer nor shipping costs.
Failure to comply with the technical specifications, failure to follow the guidelines in the installation guide and/or the technical sheet, inappropriate or excessive tightening, misuse and/or abuse, failure to comply with the maintenance guidelines, normal wear, contamination and/or corrosion, neglect/accident, unauthorized repair attempt and/or disassembly, alteration of the product, assembly with incompatible products.
If the product contains one or several parts with a 1-month limited warranty (GL), these parts will be excluded from the 5-year warranty (R5).
