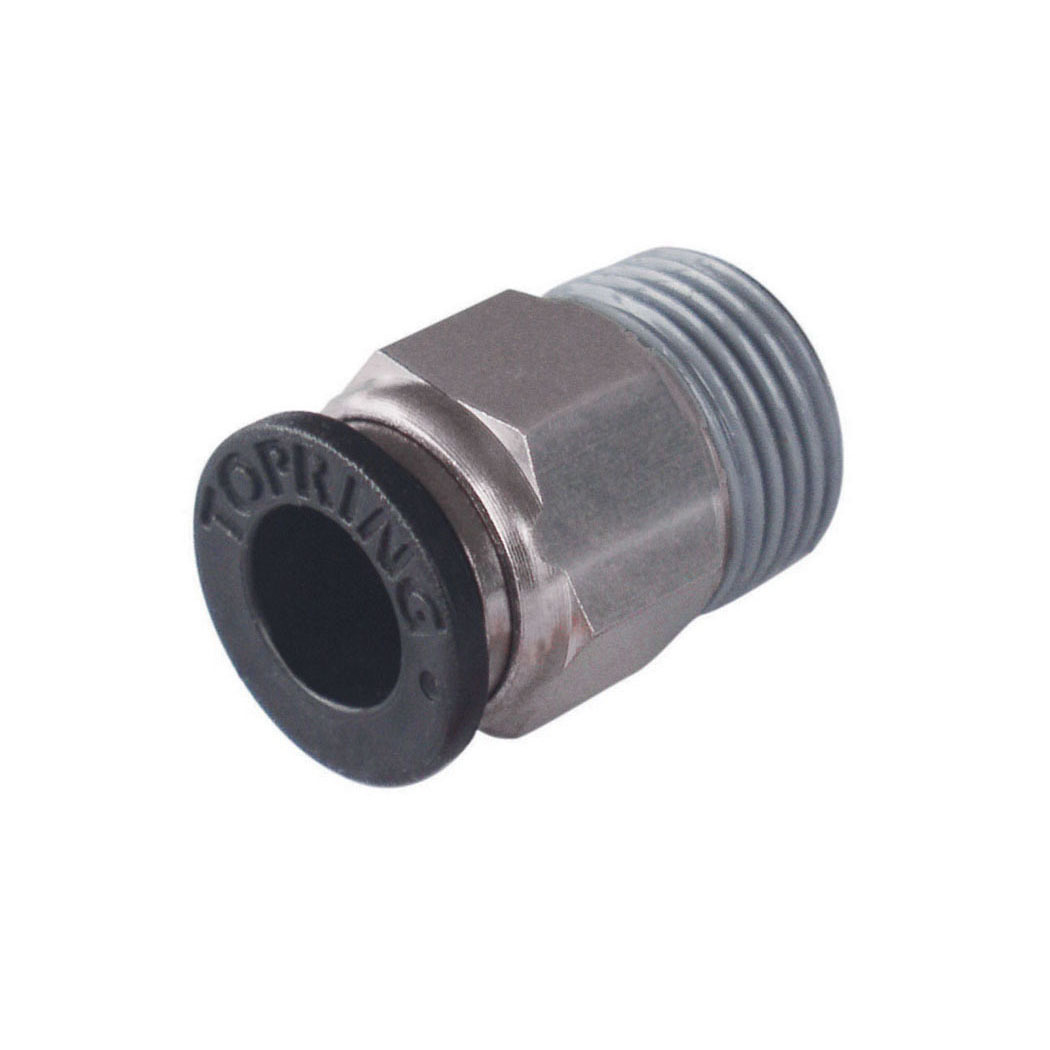

Technical specifications and certifications

• Maximum Working Pressure: 150 PSI
• Working Temperature: 5 to 60 °C
• NPT Thread / series 44: Tubing diameter in inches (imperial system)
• Tubing O.D.: 1/4 in
• Thread (M): 10-32 UNF
• Release Collar Colors: Black, mm and inch size diameter

Material(s):
• Body: Polymer (PBT)
• Release Collar: Polyacetal resin
• Threaded Body: Nickel-plated brass
• Lock Claws: Stainless steel
• O-Ring: Nitrile rubber
• Needle: Nickel-plated brass
• Lock Nut: Aluminum
• Elastic Sleeve: Nitrile rubber
• Adjusting Screw: Nickel-plated brass

Features and benefits

• Quick Connect Design: One-piece fitting saves over 75 % of assembly time compared to standard compression fittings
• Compact design: Allows fittings to be closely mounted
• Optimum flow: No part of the fitting goes inside the tubing -unrestricted tubing I.D. allows for maximum airflow
• Quick and easy connection: Wide release collar allows fast and trouble-free tubing removal
• Instantaneous Connection/Disconnection: Designed for fast assembly, disassembly and reassembly without tools
• Fully Reusable: Designed for multiple connections and disconnections with leak-free operations and solid tubing gripping
• Tubing size identification: Tubing diameter indicated on release collar
• Corrosion resistant threaded fittings: All threaded fittings are made of nickel-plated brass

• POSITIVE GRIPPING ACTION:
Stainless steel lock claws hold the tubing securely without damaging its surface
Vibration and pressure surges are safely absorbed to prevent accidental disconnections
• PERFECT SEAL:
A nitrile rubber elastic sleeve guarantees a perfect seal between standard O.D. tubing and the body of the fitting
• READY-TO-USE THREADS:
Male threads have a pre-applied sealant which allows the fitting to be reused up to five times without the need for additional sealants

Caution

• Tubing should be cut clean and straight for a leak-free connection to push-in fittings

Applications

• Compressed air and vacuum
