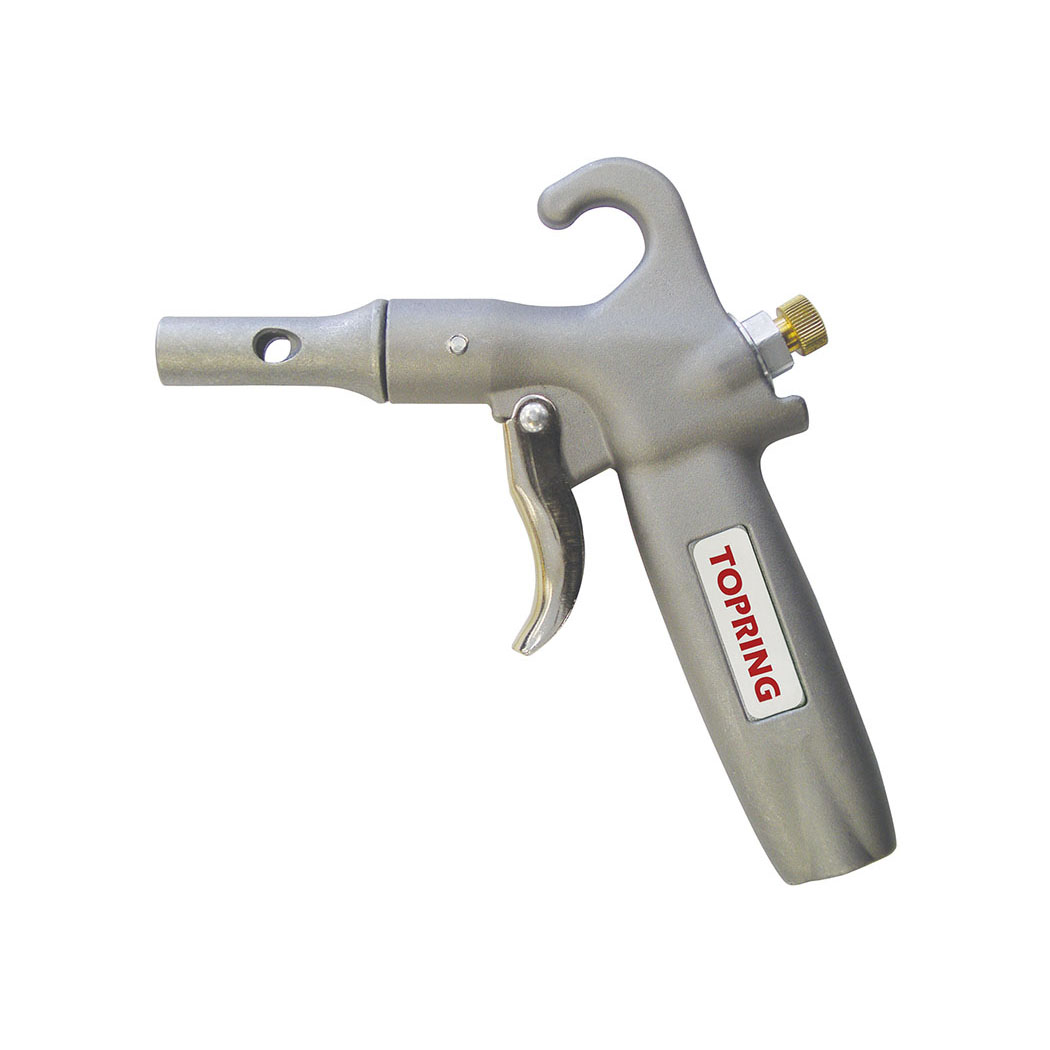

• Venturi nozzle with airflow throttle screw
• Maximum Output Thrust: 1 lbf
• Noise Level: 104 dB
• Air Consumption: 36 SCFM
• Maximum Working Pressure: 120 PSI
• Working Temperature: -40 to 65 °C
• Connection: 1/4 (F) NPT
Material(s):
• Body: Cast Aluminum
• Nozzle: Aluminum alloy, brass or stainless steel
• Tube: Durable cast Aluminum or stainless steel
• Valve: Brass
• Springs: Stainless steel
• Seals: Nitrile rubber
• Designed to move a large volume of debris through the venturi nozzle increasing the available air thrust
• Protective air screen protects user from dangerous particles, chips and debris
• Airflow control throttle screw provides lower independent airflow for delicate jobs
• If the tip of the nozzle is blocked, the airflow escapes through radial holes and the static pressure remains under 30 PSI (meets OSHA standards)
• Magnetic hook option for easy storage
HOW IT WORKS: VENTURI NOZZLE
Airflow speeds up as it passes through the nozzle, drawing in ambient air through two side ports. The increased velocity and increased volume of air exiting the nozzle amplify thrust
Should the tip of the nozzle be blocked, the entire airflow will be diverted through the side openings so the static pressure remains under 30 PSI (meets OSHA standards)
• Users should never use blow guns to clean themselves
• A vacuum or a safety cleaning unit should be used instead
• Cleaning equipment in paper and textile mills, metal cutting and woodworking equipment and other production equipment
