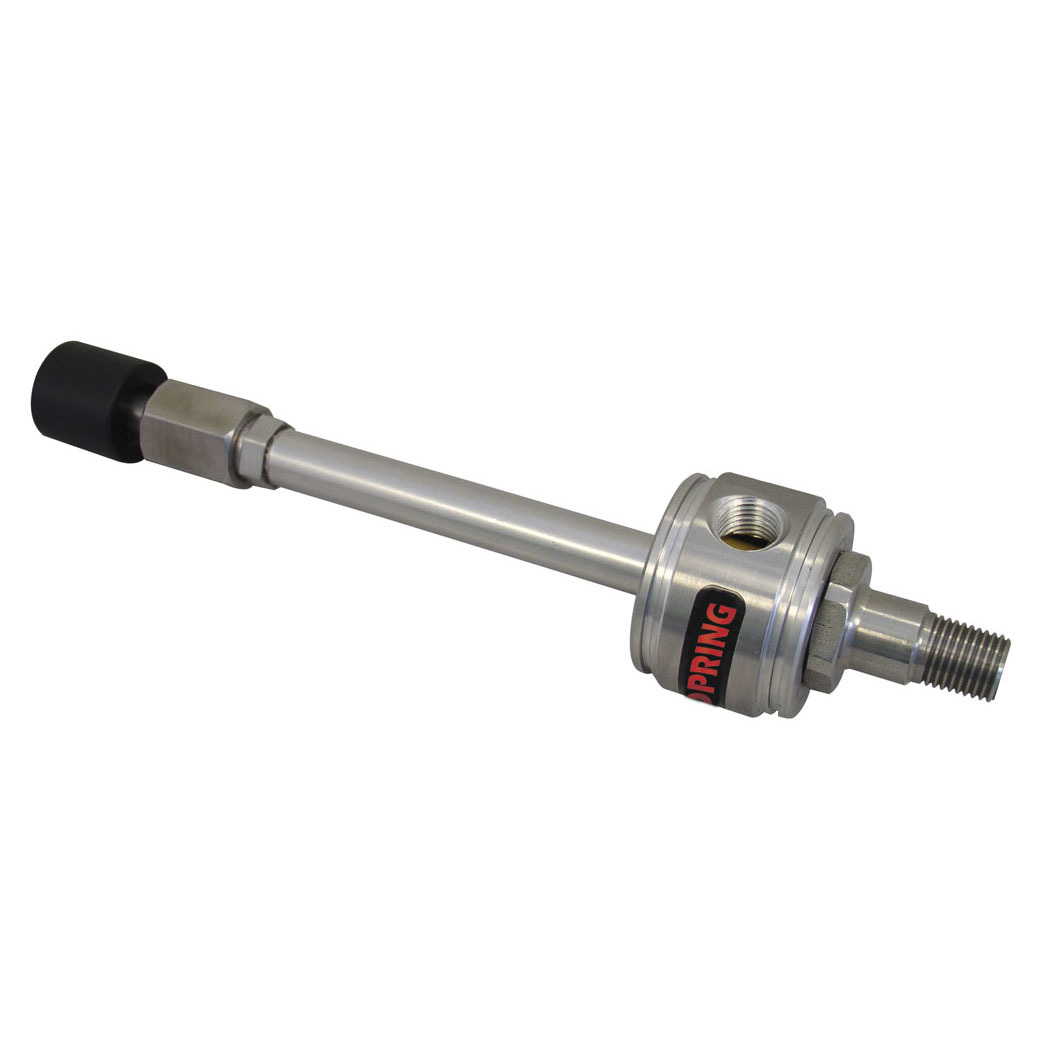

Stainless Steel Vortex Tube 25 SCFM
Stainless Steel Vortex Tube 25 SCFM
Description
It separates filtered compressed air (80–100 PSI) into two air streams: a cold air jet reaching as low as -40 °C and delivering up to 2500 Btu/h, and a hot air jet reaching up to 110 °C (230 °F).
Compact and portable, it features an adjustable control knob for precise temperature and flow regulation, with an instant on/off function for quick operation.
This industrial air cooler is spark-free, safe to use, and requires no cleaning or maintenance. It is ideal for cold manufacturing processes such as plastic and metal machining, woodworking, welding, adhesive applications, heat sealing, moulding tools, and airtight packaging.
Technical Specifications
- Product Series68
- Product TypeCooler
- Nominal Airflow Rate (SCFM)25
- Maximum Fluid Temperature (°C)110
- Cooling Capacity (BTU/h)2500
- Compatible FluidsAir
- Adjustability CapacityNo
- Body MaterialStainless Steel 303
Documents
There are no documents available.
Warranty
G1: 1 Year Warranty
The replacement warranty (G) means that the product, or parts of the product, may be replaced by a new product and/or parts or equivalent. The warranty covers any manufacturing or material defect. The warranty does not cover installation and/or removal costs incurred by the customer nor shipping costs.
Failure to comply with the technical specifications, failure to follow the guidelines in the installation guide and/or the technical sheet, inappropriate or excessive tightening, misuse and/or abuse, failure to comply with the maintenance guidelines, normal wear, contamination and/or corrosion, neglect/accident, unauthorized repair attempt and/or disassembly, alteration of the product, assembly with incompatible products.
If the product contains one or several parts with a 1-month limited warranty (GL), these parts will be excluded from the 1-year warranty (G1).
