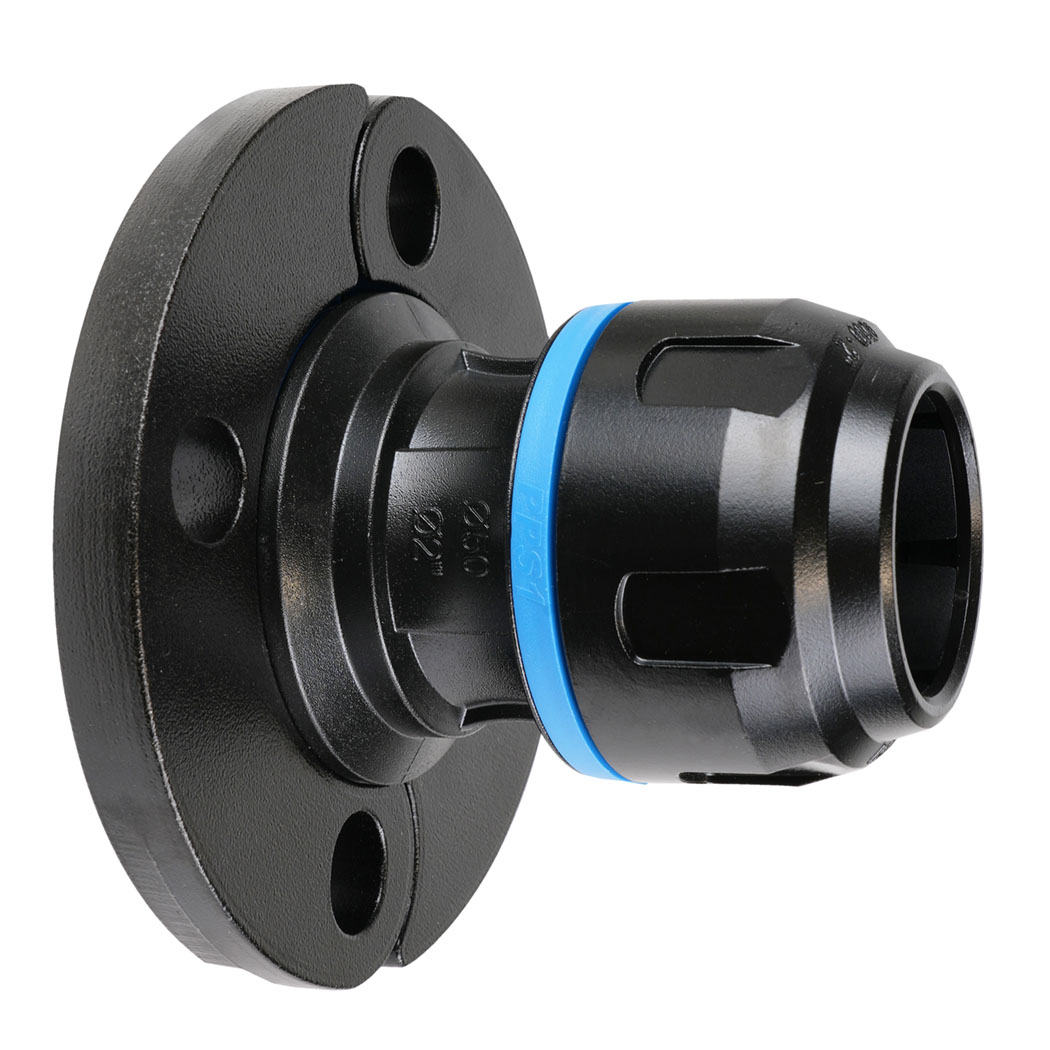

Technical specifications and certifications

• Pipe Size: 63 mm (2-1/2 in)
• Maximum Working Pressure: 191 PSI (13 BAR)
• Vacuum Level: 29.84 in Hg / -0.98 BAR
• Working Temperature: -20 to 80 °C
• Seal: Double lobe seal

Material(s):
• 100 % Aluminum, EN AB 46100
• Gripping Teeth: Stainless steel

Features and benefits

COMPACT CONNECTION FITTINGS - 50 to 100 mm / 2 to 4 in:
- connecting one to another for any configuration needed
- space saver
- ideal layout of piping system for compressor rooms

HIGH-PERFORMANCE INTERNAL GRIP DESIGN
• Stainless steel ring with gripping teeth for increased grip, strength and safety
• Internal components are securely maintained inside the fitting with the bolts and nuts connexion method

INSTALLATION TIP
• Bolts are not included
• 4 bolts required

Caution

• Installation of TOPRING PPS compressed air piping system must be made according to the assembly instructions as indicated in the installation guide
• Carefully read the technical manual and the installation guide prior to proceeding

Applications

• Compressed air
• Vacuum
• Inert gases
