Technical specifications and certifications

• Hose I.D.: 1/4 in
• Coil O.D.: 2.3 in
• Total Length: 25 ft
• Working Length: 20 ft
• Fittings (M): 1/4 NPT
• Maximum Working Pressure: 143 PSI at 23 °C
• Maximum working pressure decreases as air temperature increases
• Working Temperature Range: -40 to 70 °C
• Maximum Working Length: 80 % of total length

Material(s):
• Tube: Polyurethane
• Cover: Flame retardant technopolymer

Features and benefits

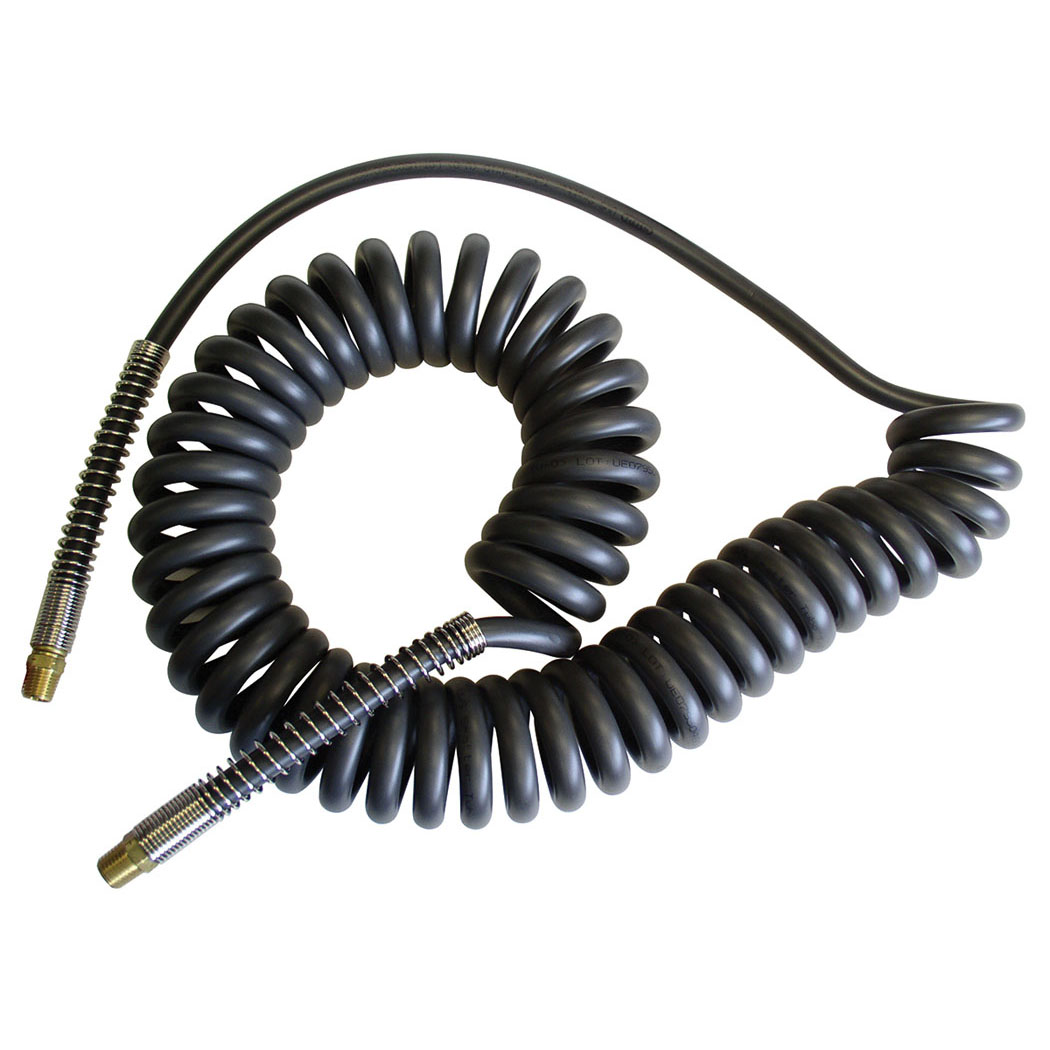

• Polyurethane inner tube with a specially formulated flame retardant technopolymer cover designed to protect against sparks and hot metal chips
• Cover meets UL94-VO requirements and offers strong insulating properties
• Highly resistant to oils, greases, most acids, bases, aqueous solutions, ozone, heat aging and ultra-violet light
• Excellent abrasion resistance
• Excellent kink resistance and recoil memory
• Offers little resistance to pull and automatically recoils
• 4 inches and 20 inches tails for tangle-free tool operations
• Swivel fitting at supply connection allows maximum directional flexibility
• Non-swivel fitting at tool end ensures a safer connection and better vibration resistance
• Silicone-free materials

Operation and installation

TECH TIP
It is important to choose the proper interior hose diameter according to the airflow required for the application
3/8 I.D. offers 3 times more flow than 1/4. I.D.

Applications

• Excellent hose for welding shops, robotic welding, chemical plant, lubrication systems, painting systems, laboratories
