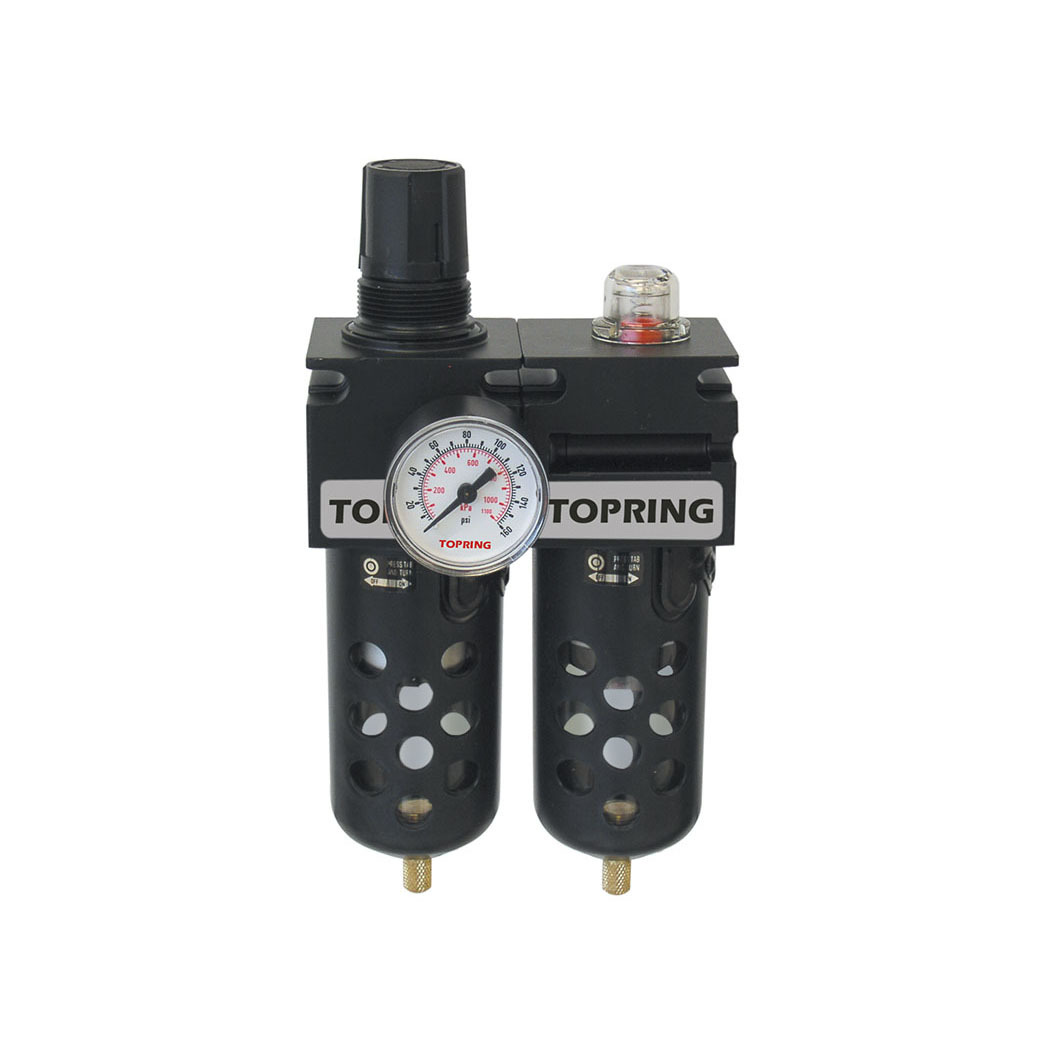

5 Micron Filter Regulator 0 to 125 PSI and 0.01 Micron Coalescing Filter 1/2 (F) NPT S50 MODULAIR MEDIUM - Discontinued
5 Micron Filter Regulator 0 to 125 PSI and 0.01 Micron Coalescing Filter 1/2 (F) NPT S50 MODULAIR MEDIUM - Discontinued
Description
This compressed air unit combines an integrated 5-micron filter-regulator with a 0.01-micron coalescing filter, providing high-performance dual filtration to improve air quality at the point of use. It effectively removes particles, moisture and oil mist to protect pneumatic tools and ensure reliable operation.
The diaphragm regulator ensures stable and accurate pressure, while the automatic drain removes condensate autonomously. A differential pressure indicator shows the saturation level of the coalescing filter to support optimal maintenance. The push-pull adjustment knob provides simple and safe pressure setting, and the included pressure gauge offers immediate visual monitoring.
Designed in a modular format, the unit installs easily in-line or as part of a complete air treatment system.
A compact, durable and efficient solution to optimize compressed air quality in industrial environments.
Technical Specifications
- Product Series50
- Product TypeCombined Units
- LockableNo
- Sub-BrandMODULAIR MEDIUM
- Maximum Fluid Temperature (°C)52
- Maximum Inlet Pressure (PSI)150
- Minimum Regulated Pressure (PSI)0
- Filter TypeCoalescing
- Reference Filtration Level (micron)0.01
- Nominal Airflow Rate (SCFM)43
- Drain TypeAutomatic
- Trigger TypeMechanical Float
Documents
Warranty
R2: 2 Year Repair
The repair warranty (R) means that the product or parts of the product will be repaired or refurbished. The warranty covers any manufacturing or material defect. The warranty does not cover installation and/or removal costs incurred by the customer nor shipping costs.
Failure to comply with the technical specifications, failure to follow the guidelines in the installation guide and/or the technical sheet, inappropriate or excessive tightening, misuse and/or abuse, failure to comply with the maintenance guidelines, normal wear, contamination and/or corrosion, neglect/accident, unauthorized repair attempt and/or disassembly, alteration of the product, assembly with incompatible products.
If the product contains one or several parts with a 1-month limited warranty (GL), these parts will be excluded from the 2-year warranty (R2).
See all the solutions offered by TOPRING to repair or replace the components of filters, regulators, and lubricators (drains, elements, bowls, pressure gauges, etc).
