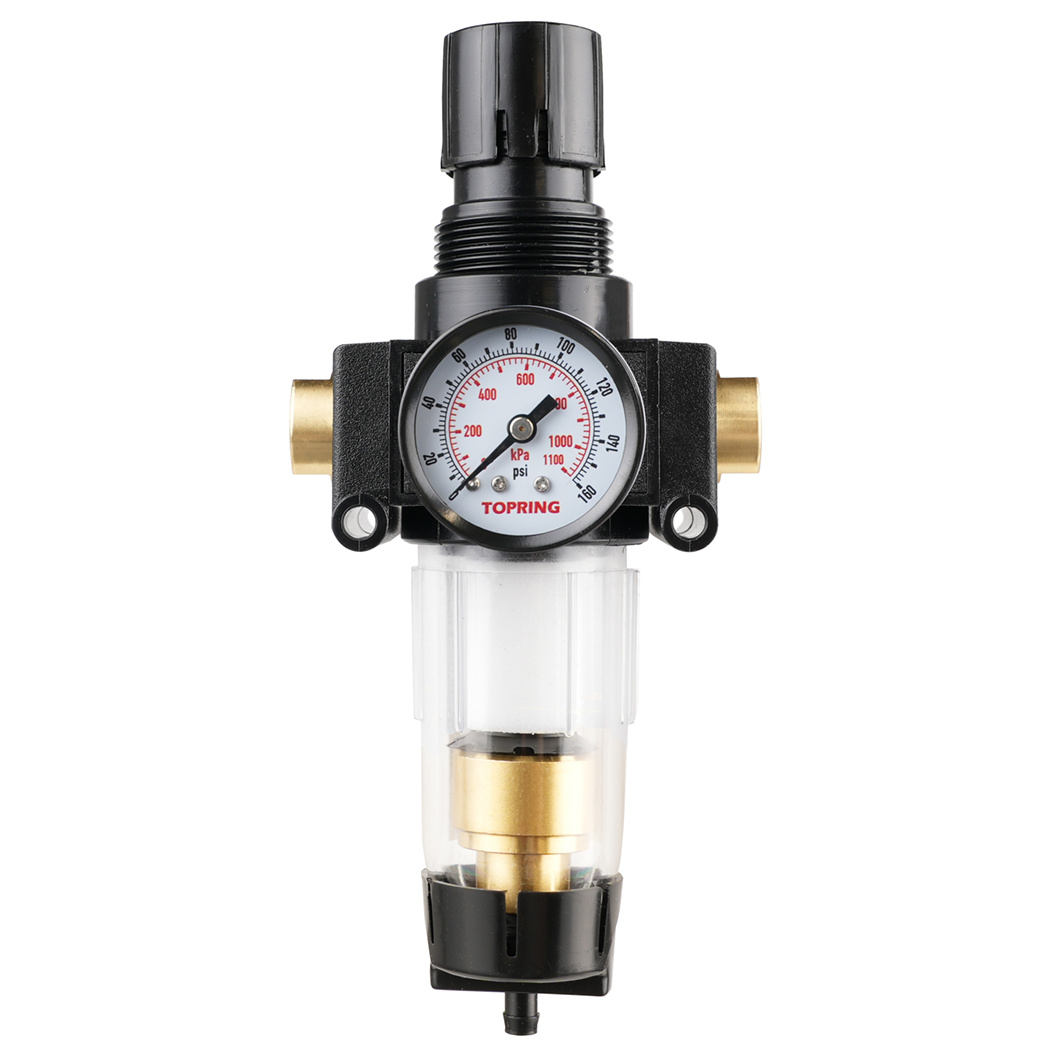

• Port Size: 1/4 (F) NPT
• Maximum Airflow at 100 PSI: 20 SCFM
• Ambient/Media Temperature: 4 to 52 °C
• Inlet Pressure:
Standard bowl with semi-automatic drain: 15-150 PSI
• Outlet Pressure: Adjustable up to 100 PSI
• Panel Mounting: 30 mm hole required
• Drain: Semi-automatic
• Bowl Capacity: 60 ml
• Standard Bowl: High-strength Polycarbonate
• Seals: Nitrile
• Modular or inline mounting
• Designed to remove particulate material to 5 micron from the airstream to protect downstream equipment
• Superior removal of free water up to 98% efficiency
• Superior pressure regulation — piston type regulator
• Self relieving design
• Push-pull adjusting knob
