Steel Hydraulic Coupler 1 (F) NPT

Product #:29.995
Hydraulic Quick Couplers

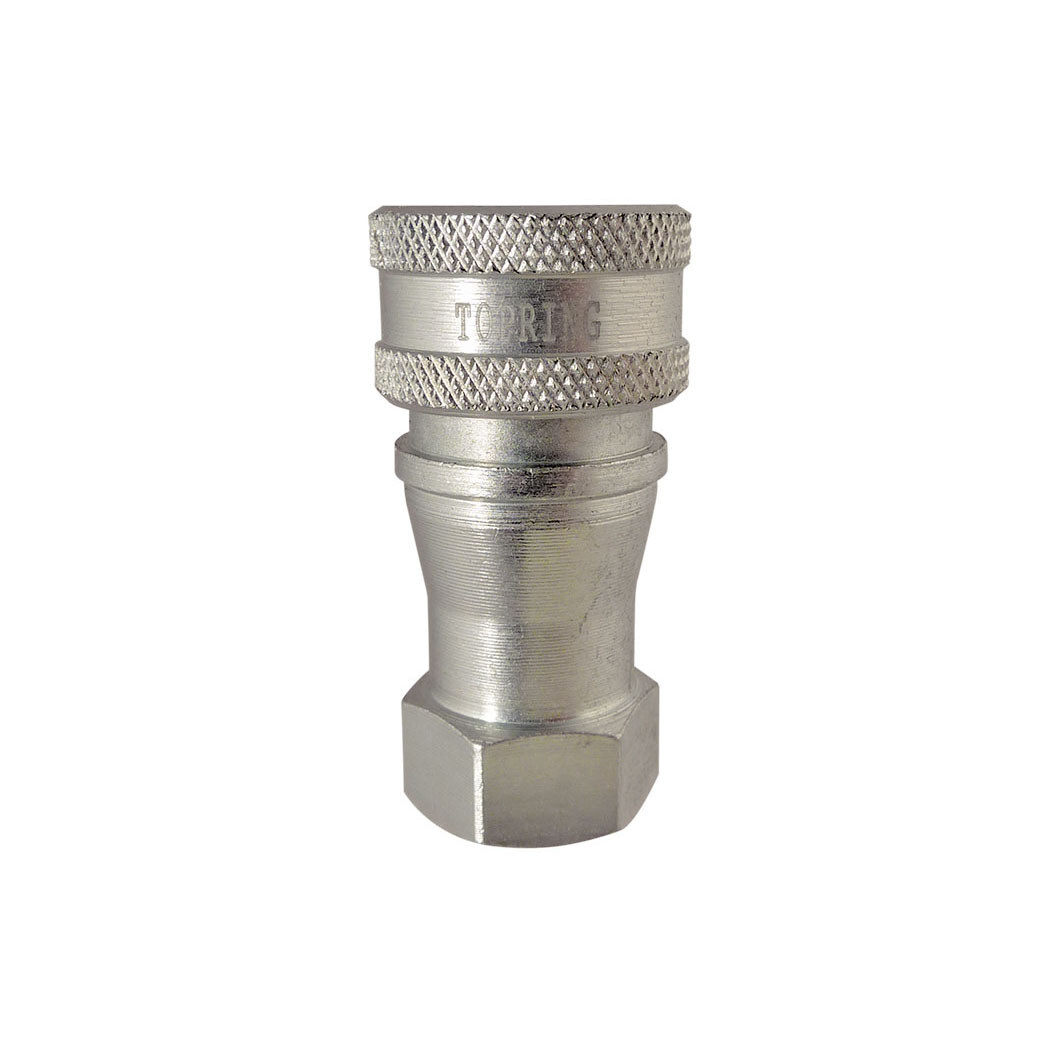

Steel Hydraulic Coupler 1 (F) NPT

Product #:29.995

    Description

    This steel automatic shut-off coupler ensures a perfect seal upon disconnection, with no fluid loss. Its manual connection with dual shut-off valves provides simple and safe handling. Designed with corrosion-resistant internal components, it delivers long-term reliability.
    Ideal for hydraulic systems, plastic injection molding, as well as demanding environments in the forestry, mining, construction, excavation, and agricultural sectors.

    Technical Specifications

    • Product Series29
    • Product TypeHydraulic Quick Couplers
    • Rotation CapacityContinuous
    • Maximum Angle Of Rotation360°
    • SwivelNo
    • Maximum Inlet Pressure (PSI)4500
    • Maximum Fluid Temperature (°C)125
    • Inlet Connection TypeThreaded
    • Inlet Connection SubtypeNPT
    • Inlet Nominal Size (Imperial)1 in
    • Inlet Connection GenderFemale
    • Outlet Connection TypeManual

    More Information

    These couplers and plugs should never be connected or disconnected under pressure.

    Documents

    There are no documents available.

    Warranty

    G03: 3 Month Warranty

    The replacement warranty (G) means that the product, or parts of the product, may be replaced by a new product and/or parts or equivalent. The warranty covers any manufacturing or material defect. The warranty does not cover installation and/or removal costs incurred by the customer nor shipping costs.

    Failure to comply with the technical specifications, failure to follow the guidelines in the installation guide and/or the technical sheet, inappropriate or excessive tightening, misuse and/or abuse, failure to comply with the maintenance guidelines, normal wear, contamination and/or corrosion, neglect/accident, unauthorized repair attempt and/or disassembly, alteration of the product, assembly with incompatible products.

    If the product contains one or several parts with a 1-month limited warranty (GL), these parts will be excluded from the 3-month warranty (G03).

    Disclaimer

    Please note that while we make every effort to accurately represent our products on our website, slight variations in design and appearance may occur due to factors such as manufacturing processes and materials used.
