• Port Size: 3/4 (F) NPT
• Maximum Airflow at 100 PSI: 159 SCFM
• Maximum Working Pressure: 150 PSI
• Pressure Range: Standard: 5-125 PSI
• Options: 5-30 PSI • 5-60 PSI
• Working Temperature: 5 to 60 °C
• Filtration: 5 microns
• Drain: Automatic drain
• Bowl Capacity: 45 ml
• Pressure Gauge Port Size: 1/4 (F) NPT
Material(s):
• Body Material(s): Die cast Aluminum
• Bowl Type:Polycarbonate with steel guard
• Bowl Guard: Steel
• Regulation Type: Relieving
• Filter Element: Polyethylene, 5 microns
• Deflector & Spinner: ABS
• O-Rings & Seals: EPDM rubber
• Regulator Cap: Reinforced nylon
• Regulator Adjusting Knob: Reinforced nylon
• Diaphragm: EPDM rubber
• Poppet Valve: Brass and rubber
• Regulator Spring: Stainless steel

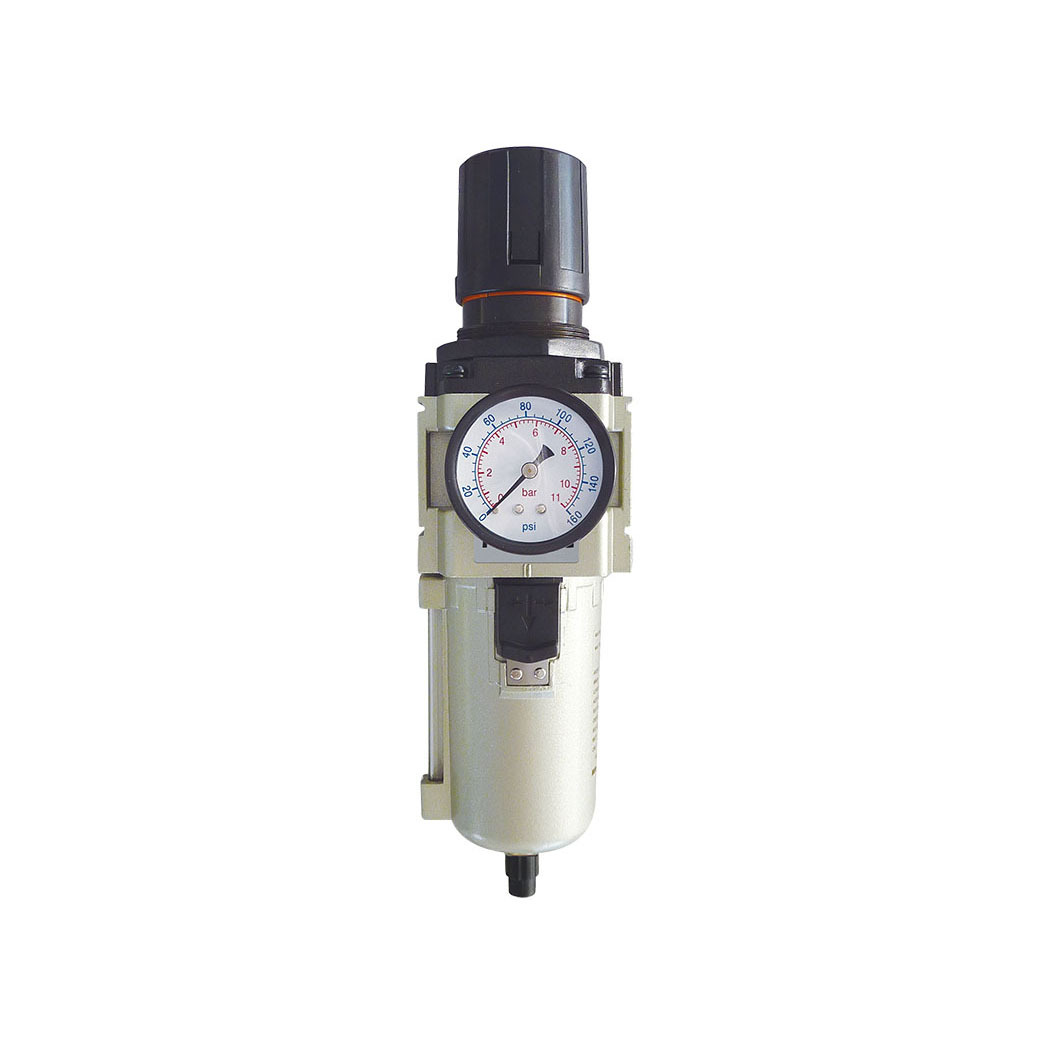

• Space saving integrated filter/regulator design
• Accurate pressure control with little drift
• Removable locking push-pull adjusting knob
• Pressure gauge and mounting bracket included
• High performance filtration, regulation and lubrication
• Quick and easy mounting and removal with modular system
• Compact size for easy installation
• Bayonet type bowl locking system
• Silicone-free assembly lubricant
WHERE TO INSTALL A FILTER
Install the filter as far as possible from the compressor to allow the compressed air to cool and water vapors to condense. Removal of water in liquid form is more effective than removing water which is vapor form.
Install the filter closest to the tool and before the lubricator and regulator
Always install the filter with the arrows pointing to the tool or application
WHERE TO INSTALL A REGULATOR
Install the regulator on each pipe where applications and air tools requires different working pressure
Always install the regulator downstream of a filter and upstream of a lubricator
Can be installed vertically or horizontally
Always install regulator with the arrows pointing to the tool or application
