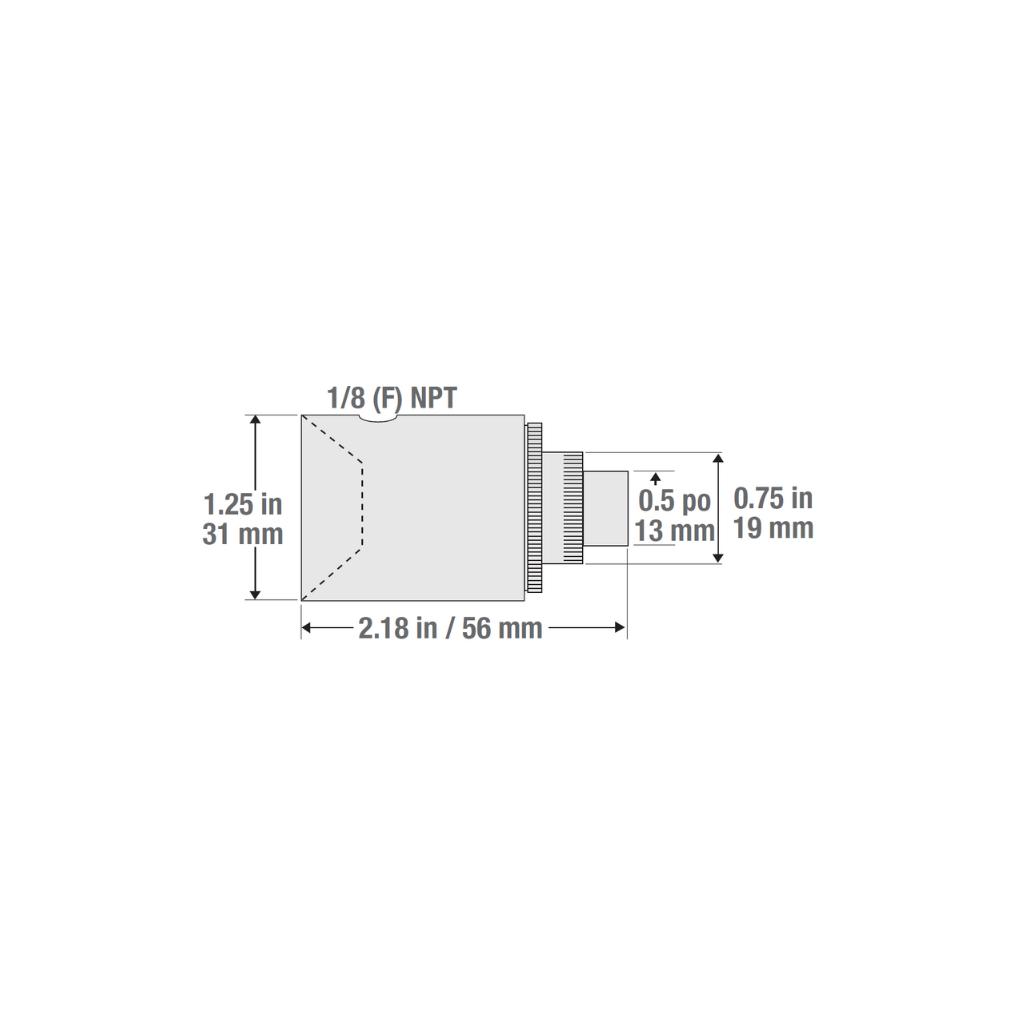

Brass Adjustable Air Amplifier 1/8 (F) NPT
Brass Adjustable Air Amplifier 1/8 (F) NPT
Description
This adjustable brass air amplifier produces an air jet up to four times greater than the input flow, significantly reducing compressed air consumption while maintaining high performance.
Safe and quiet in operation, it is ideal for part ejection, chip and debris removal, surface cleaning, equipment cooling, and vapour or smoke extraction.
With no moving parts, it operates maintenance-free and poses no risk of explosion or electric shock. Its adjustable air flow and instant on/off capability provide precise, safe, and energy-efficient control in industrial environments.
Technical Specifications
- Product Series68
- Product TypeAir Amplifiers
- Nominal Airflow Rate (SCFM)15
- Maximum Amplified Airflow (SCFM)60
- Amplification Factor (X : X)4:1
- Air Consumption (SCFM)15
- Maximum Inlet Pressure (PSI)250
- Compatible FluidsAir
- Power Supply TypeNone
- Inlet Connection TypeThreaded
- Inlet Connection SubtypeNPT
- Inlet Nominal Size (Imperial)1/8 in
Documents
There are no documents available.
Warranty
G1: 1 Year Warranty
The replacement warranty (G) means that the product, or parts of the product, may be replaced by a new product and/or parts or equivalent. The warranty covers any manufacturing or material defect. The warranty does not cover installation and/or removal costs incurred by the customer nor shipping costs.
Failure to comply with the technical specifications, failure to follow the guidelines in the installation guide and/or the technical sheet, inappropriate or excessive tightening, misuse and/or abuse, failure to comply with the maintenance guidelines, normal wear, contamination and/or corrosion, neglect/accident, unauthorized repair attempt and/or disassembly, alteration of the product, assembly with incompatible products.
If the product contains one or several parts with a 1-month limited warranty (GL), these parts will be excluded from the 1-year warranty (G1).
